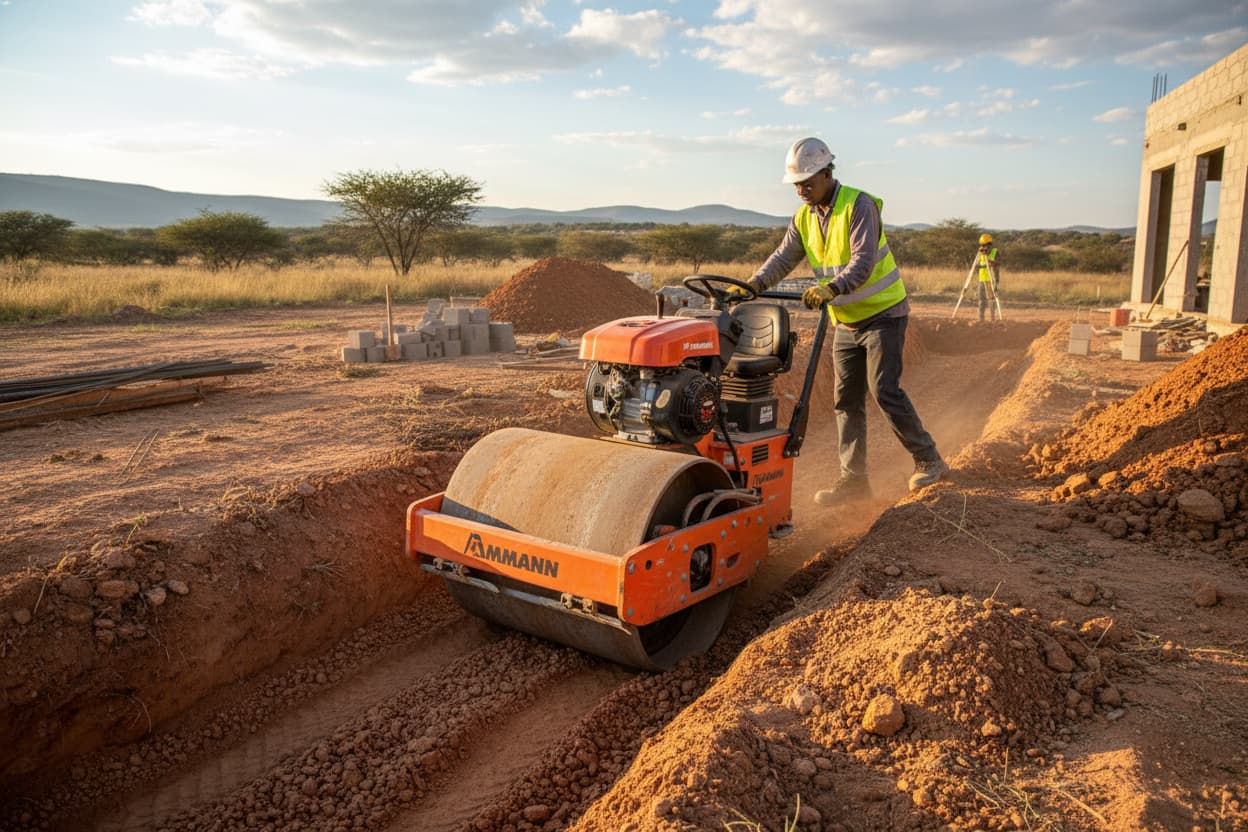

Ammann ATR60 Single Drum Roller
The Ammann ATR60 is a lightweight, pedestrian-operated single drum vibratory roller designed for efficient compaction in confined spaces, ideal for trench work, backfill, and small asphalt repairs on South African construction sites.
Overview
The Ammann ATR60 single drum roller is a compact and highly maneuverable vibratory tamper, specifically engineered for effective compaction in areas where larger equipment cannot operate. Weighing approximately 62 kg, this pedestrian-controlled roller is a staple for trench compaction, backfill consolidation, and small patch repairs on roads and pathways across South Africa. Its design prioritises ease of use, transportability, and robust performance in demanding conditions.
Equipped with a reliable petrol engine, the ATR60 delivers consistent vibratory force to achieve optimal compaction densities. The ergonomic handle design reduces operator fatigue, while the machine's balanced weight distribution ensures stable operation. For South African contractors, the ATR60 represents a cost-effective solution for achieving specified compaction requirements in utility installations, landscaping projects, and general civil engineering works. Its small footprint makes it particularly valuable in urban environments or on sites with limited access.
Key advantages for local operations include:
- Maneuverability: Easily navigates tight corners and confined spaces.
- Compaction Efficiency: Delivers high-frequency vibrations for effective material consolidation.
- Ease of Transport: Compact size and relatively low weight simplify site-to-site movement.
- Operator Comfort: Designed with user-friendly controls and vibration dampening.
- Versatility: Suitable for a range of materials including granular soils, asphalt, and mixed aggregates.
While its primary role is in smaller-scale compaction, the ATR60's reliability and performance make it an indispensable tool for many South African plant hire companies and contractors looking to complement their larger compaction fleet or tackle niche jobs efficiently.
Key specs
- Operating Weight
- 62 kg
- Drum Width
- 300 mm (est.)
- Centrifugal Force
- 10 kN (est.)
- Vibration Frequency
- 90 Hz (est.)
- Engine Type
- Petrol (Honda GX100 or similar) (est.)
- Engine Power
- 2.2 kW (3 hp) (est.)
- Fuel Tank Capacity
- 2.5 L (est.)
- Working Speed
- 20 m/min (est.)
- Gradeability
- 20% (est.)
- Starting System
- Recoil Starter (est.)
- Dimensions (L x W x H)
- 1000 x 300 x 1000 mm (approx) (est.)
- Compaction Depth
- Up to 200 mm (depending on material) (est.)
Specifications are typical for the Ammann ATR60 and may vary slightly based on specific engine configurations or regional variations. Values marked 'estimated' are based on common industry standards for this class of equipment.
Applications
- Trench compaction for utility installations (water, sewer, electrical)
- Backfill compaction around foundations and structures
- Small asphalt patch repairs and pathway construction
- Landscaping projects and garden bed preparation
- Compaction of granular soils, gravel, and mixed aggregates
- Confined space compaction where larger rollers cannot access
Features
- Compact and lightweight design for easy handling
- High-frequency vibratory system for effective compaction
- Ergonomic, vibration-dampened handle for operator comfort
- Robust protective frame for engine and components
- Reliable petrol engine for consistent performance
- Integrated lifting points for secure transport
- Water sprinkler system for asphalt applications (optional/model dependent)
Operating requirements
- Competent operator trained in safe vibratory roller operation
- Appropriate personal protective equipment (PPE) including hearing protection, safety boots, and gloves
- Adequate ventilation when operating in enclosed or semi-enclosed spaces
- Stable and relatively level ground for safe operation and transport
- Regular checks of fuel and oil levels before each use
- Understanding of material types and desired compaction densities
Attachments and options
Common attachments
- Water tank and sprinkler kit (for asphalt work)
- Wheel kit for easier site movement
- Paving pads for delicate surfaces
Options
- Hour meter for tracking usage and maintenance intervals
- Different drum widths (less common for this model)
- Alternative engine brands (market dependent)
Maintenance and inspections
- Daily inspection of engine oil, fuel, and air filter
- Regular cleaning of the drum and machine body
- Checking and tightening of all bolts and fasteners
- Periodic inspection of vibrator bearings and seals
- Engine service as per manufacturer's schedule (oil change, spark plug, filter replacement)
- Lubrication of moving parts as specified in the manual
- Storage in a dry, secure location to prevent corrosion
Adherence to Ammann's recommended service schedule is crucial for longevity and optimal performance, especially given the demanding conditions often found on South African construction sites. Access to genuine spare parts and a reliable service network is important.
Safety notes
- Always wear appropriate PPE, including hearing protection, safety footwear, and gloves.
- Ensure the work area is clear of personnel and obstructions before starting.
- Never operate the machine on excessively steep slopes or unstable ground.
- Familiarise yourself with the machine's controls and emergency stop procedures.
- Refuel only when the engine is off and cool, in a well-ventilated area.
- Secure the machine properly during transport to prevent movement.
- Be aware of pinch points and moving parts during operation and maintenance.
Buying checklist
- Verify the machine's operating condition, including engine start-up and vibration function.
- Check for any signs of excessive wear on the drum, frame, or engine components.
- Confirm the availability of spare parts and service support in your region of South Africa.
- Inspect the engine for leaks, unusual noises, or excessive smoke.
- Test the emergency stop and all control levers for proper function.
- Request a full service history if purchasing a used unit.
- Compare pricing from multiple dealers to ensure a competitive offer.
- Consider transport logistics and ease of loading/unloading for your typical job sites.
- Assess the machine's suitability for your specific compaction material and depth requirements.
FAQ
What materials can the Ammann ATR60 compact?
The Ammann ATR60 is primarily designed for compacting granular soils, gravel, sand, and mixed aggregates. With an optional water sprinkler system, it can also be used for small asphalt patch repairs.
Is the ATR60 suitable for large construction sites?
While robust, the ATR60 is a compact, pedestrian-operated roller best suited for confined spaces, trench work, and small-scale compaction tasks. For large open areas, larger ride-on rollers would be more efficient.
What is the typical fuel consumption for an ATR60?
Fuel consumption can vary based on engine load and operating conditions, but a typical petrol engine of this size (around 2.2 kW) would consume approximately 0.8 to 1.5 litres per hour under normal working conditions. (est.)
How easy is it to transport the Ammann ATR60?
Due to its compact size and relatively low operating weight of 62 kg, the ATR60 is very easy to transport. It can typically be loaded onto a bakkie or small trailer by two people, or with a ramp by one.
