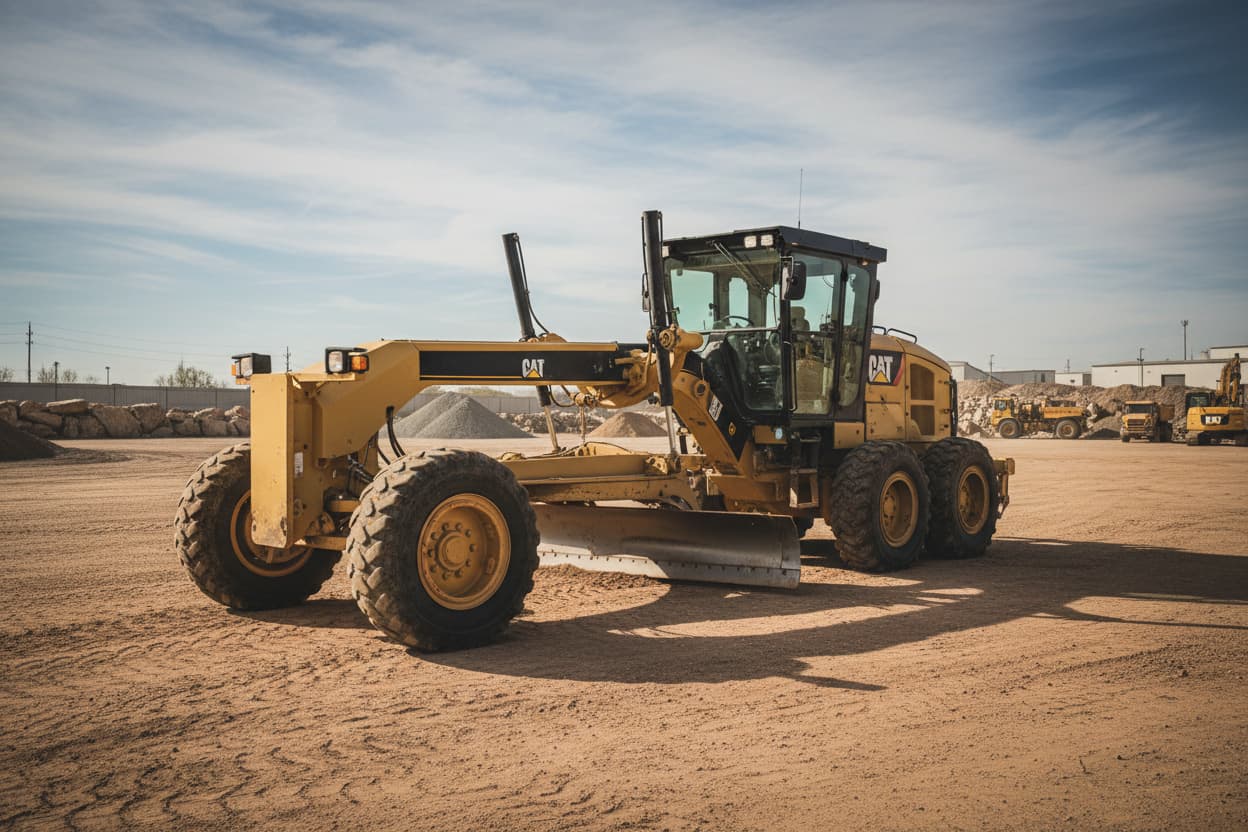

Caterpillar 14M Grader
The Caterpillar 14M is a heavy-duty motor grader renowned for its precision, power, and durability, making it a top choice for large-scale road construction, mining haul road maintenance, and civil engineering projects across South Africa. Its advanced controls and robust design ensure high productivity and operator comfort in demanding conditions.
Overview
The Caterpillar 14M motor grader is a formidable machine designed for high-precision grading and heavy-duty earthmoving tasks. Introduced as part of Caterpillar's M-Series, it brought significant advancements in operator control, hydraulic performance, and overall efficiency compared to its predecessors. In the South African context, the 14M is a common sight on major infrastructure projects, large commercial farms, and mining operations, where its ability to handle tough terrain and deliver accurate finishes is highly valued.
Operators appreciate the 14M's intuitive joystick controls, which replace traditional levers, reducing fatigue and improving precision. The machine's powerful Cat C11 ACERT engine provides ample power for ripping, scarifying, and heavy blading, while the advanced transmission system ensures smooth gear changes and optimal power delivery. Its robust frame and components are built to withstand the rigours of continuous operation in harsh African environments, contributing to its reputation for reliability and longevity.
Key aspects that make the 14M a preferred choice for South African contractors include:
- Precision Grading: Advanced hydraulic systems and optional Cat GRADE technologies allow for extremely accurate blade positioning, crucial for road final finishes and material spreading.
- Operator Comfort: The M-Series cab is designed with ergonomics in mind, featuring excellent visibility, reduced noise levels, and climate control, which are vital for long shifts in varying weather conditions.
- Durability: Built with heavy-duty components and a robust frame, the 14M is engineered for a long service life, even under the demanding conditions often found in South African mining and construction.
- Serviceability: Caterpillar's design prioritises ease of maintenance, with ground-level service points and modular components, helping to minimise downtime and reduce operational costs.
While the initial investment for a 14M can be substantial, its productivity, fuel efficiency, and strong resale value often justify the cost for operations requiring a high-performance grader.
Key specs
- Years produced
- 2007–2013
- Year range
- 2010
- Engine Model
- Cat C11 ACERT
- Gross Power
- 194-213 kW (260-285 hp)
- Operating Weight
- 24,370 kg
- Blade Width
- 4.27 m (14 ft)
- Blade Pull (Max)
- 16,000 - 18,000 kg (estimated) (est.)
- Fuel Tank Capacity
- 492 litres
- Transmission
- Direct Drive, Power Shift
- Max Travel Speed (Forward)
- 47.5 km/h
- Articulation Angle
- 20 degrees left/right
- Turning Radius (Outside Front Tire)
- 7.9 m
- Tire Size
- 17.5-25, 14 PR (standard)
- Hydraulic Pump Flow
- 210-240 L/min (estimated) (est.)
Specifications may vary slightly based on specific configuration, year of manufacture, and regional standards. Values provided are typical for the 14M series.
Applications
- Heavy road construction and maintenance (national and provincial roads)
- Mining haul road construction and maintenance (open-pit mines)
- Large-scale civil engineering projects (airports, industrial parks)
- Land reclamation and large-area levelling
- Dam and embankment construction
- Material spreading and windrow management
Features
- Joystick controls for precise blade and machine functions
- Cat C11 ACERT engine for power and fuel efficiency
- Advanced load-sensing hydraulics for consistent blade response
- Integrated Cat GRADE technology options (e.g., Cross Slope, AccuGrade)
- Spacious, climate-controlled cab with excellent visibility
- Robust main frame and drawbar, circle, and moldboard (DCM) for durability
- Automatic Differential Lock for improved traction
- Engine overspeed protection system
- Ground-level service points for easier maintenance
Operating requirements
- Skilled and certified grader operator with M-Series experience
- Regular access to Cat-approved fuel and lubricants
- Scheduled preventative maintenance as per manufacturer guidelines
- Adequate transport for machine movement between sites (lowbed trailer)
- On-site technical support or access to Cat dealer network for complex repairs
- Appropriate safety protocols and PPE for operators and ground staff
- Clear communication systems for large site operations
Attachments and options
Common attachments
- Front-mounted scarifier/ripper
- Rear-mounted ripper/scarifier
- Push block/dozer blade
- Moldboard extensions
- Snow wing (less common in SA, but available)
Options
- Various tire options for different ground conditions
- Automatic lubrication system
- Product Link™ telematics system for remote monitoring
- Cold weather starting aids
- Additional work lights and beacons
- Fire suppression system (especially for mining applications)
- Cat GRADE technologies (e.g., Cross Slope, AccuGrade Ready)
Maintenance and inspections
- Daily pre-start checks (fluids, tires, blade condition)
- Regular engine oil and filter changes (every 250-500 hours)
- Hydraulic system filter replacement and oil sampling
- Greasing of all pivot points and articulation joints
- Inspection and adjustment of moldboard and cutting edges
- Cooling system checks and cleaning
- Transmission fluid and filter changes
- Undercarriage inspection (if applicable, though graders are wheeled)
Adherence to Caterpillar's recommended maintenance schedule is crucial for maximising uptime and extending the lifespan of the 14M grader, especially in the demanding South African operating environment.
Safety notes
- ROPS/FOPS certified cab for operator protection
- Multiple mirrors and optional rearview camera for enhanced visibility
- Seat belt interlock system
- Emergency stop buttons
- Non-slip surfaces and handrails for safe access
- Audible travel alarm (reverse alarm)
- Lockable service points to prevent unauthorised access
- Well-placed fire extinguisher
Buying checklist
- Verify service history and maintenance records (critical for high-value assets)
- Inspect the frame for cracks or major repairs, especially around the articulation joint and DCM
- Check engine for excessive smoke, unusual noises, and oil leaks
- Test all hydraulic functions for smooth operation and responsiveness (blade lift, tilt, circle rotation)
- Examine the moldboard, cutting edges, and scarifier/ripper teeth for wear
- Assess tire condition and tread depth; replacement can be costly
- Verify the functionality of all electrical systems, lights, and cabin controls
- Obtain an oil analysis report for engine, transmission, and hydraulic systems
- Confirm availability of parts and support from local Caterpillar dealers in your region
- Negotiate price based on machine condition, hours, and included attachments/options
FAQ
What is the typical fuel consumption of a Cat 14M grader?
Fuel consumption for a Cat 14M can vary significantly based on application, operator technique, and engine load. Typically, expect a range of 25-45 litres per hour under normal operating conditions in South Africa. Heavy ripping or high-speed blading will be at the higher end.
Are parts for the Cat 14M readily available in South Africa?
Yes, Caterpillar has an extensive dealer network across South Africa (e.g., Barloworld Equipment). Parts for the 14M are generally well-stocked, though specialised components might require ordering. This strong support network is a key advantage of owning Cat equipment in the region.
What are the main advantages of the joystick controls on the 14M?
The joystick controls on the 14M significantly reduce operator fatigue by replacing numerous levers with two intuitive joysticks. This allows for more precise and simultaneous control of multiple functions, improving grading accuracy and overall productivity, especially during long shifts.
What kind of projects is the 14M best suited for in South Africa?
The 14M is ideally suited for large-scale projects requiring high power and precision. This includes major road construction (national and provincial roads), maintenance of long haul roads in mining operations, large civil infrastructure developments, and extensive land levelling for agricultural or industrial sites.
