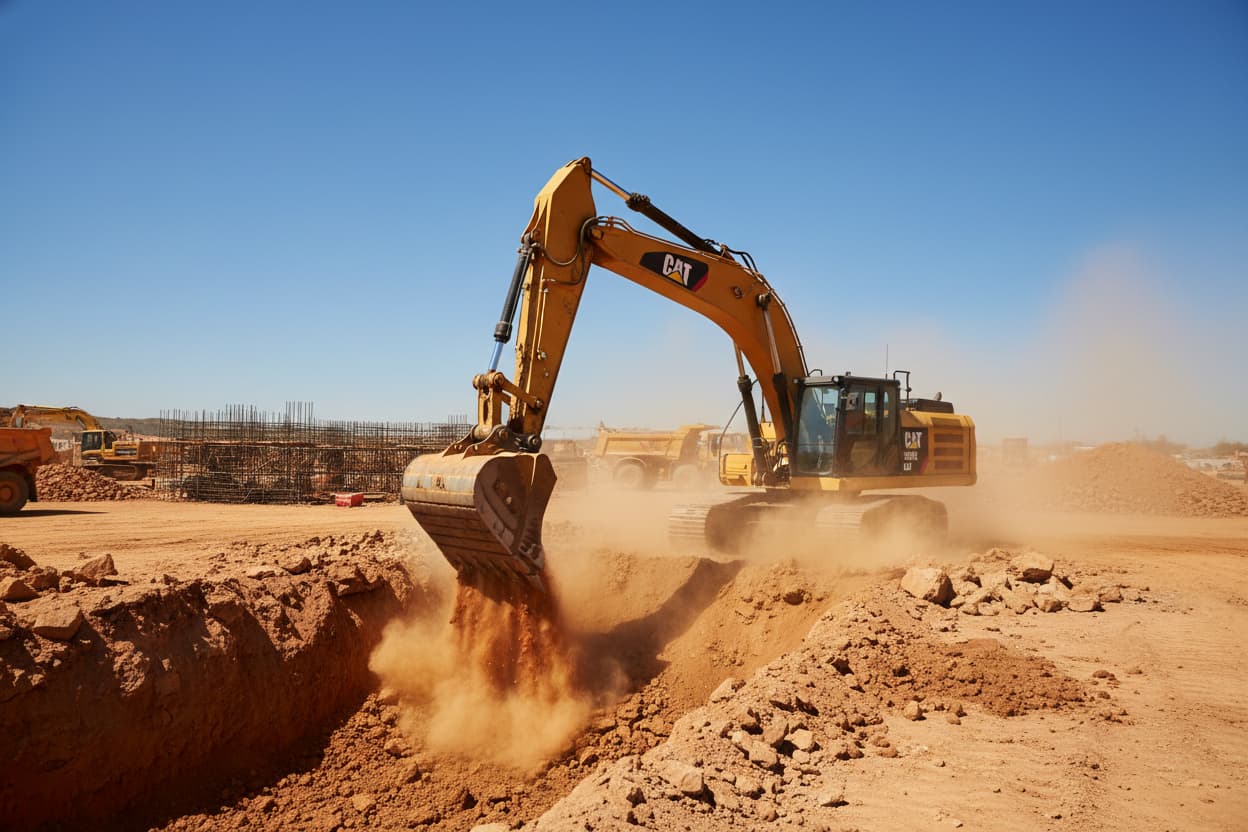

Caterpillar 365BL Excavator
The Caterpillar 365BL is a heavy-duty hydraulic excavator, part of the B-Series, renowned for its robust construction, powerful performance, and reliability in demanding large-scale earthmoving and quarrying operations. With an operating weight typically around 65-70 tons, it's a workhorse for high-volume material handling and tough digging conditions across South Africa.
Overview
The Caterpillar 365BL excavator is a formidable machine designed for serious earthmoving tasks. Introduced as an upgrade to the earlier 365B, the 'L' designation typically indicates a long undercarriage, providing enhanced stability and lifting capacity, crucial for heavy-duty applications in South African mines, quarries, and large infrastructure projects. This model is known for its powerful Cat 3406C engine, delivering substantial horsepower and torque for efficient digging and loading.
Operators in South Africa value the 365BL for its durability and ability to handle challenging conditions, from hard rock excavation to high-volume material loading. Its hydraulic system is engineered for precision and power, allowing for smooth multi-function operation and quick cycle times. While it's an older model, its robust build means many units are still in active service, supported by Caterpillar's extensive parts and service network, which is a significant advantage in the South African market.
Key aspects that make the 365BL a continued presence on South African sites include:
- Proven Reliability: The 3406C engine is a well-regarded power plant known for its longevity.
- Heavy-Duty Construction: Designed to withstand the rigours of quarrying and mining.
- Operator Comfort: While not as advanced as modern cabs, it offers a functional and relatively comfortable workspace for long shifts.
- Parts Availability: Caterpillar's strong presence ensures access to critical spares, reducing downtime.
When considering a 365BL, South African buyers often look at the machine's service history, undercarriage condition, and hydraulic pump health, as these are key indicators of remaining operational life and potential maintenance costs.
Key specs
- Years produced
- 1996–2002
- Year range
- 2025
- Operating Weight
- 65,800 kg - 68,000 kg (est.)
- Engine Model
- Caterpillar 3406C
- Gross Power
- 306 kW (410 hp)
- Bucket Capacity Range
- 3.0 m³ - 5.0 m³
- Max Digging Depth
- 8.0 m - 9.0 m (est.)
- Max Reach at Ground Level
- 12.0 m - 13.5 m (est.)
- Track Shoe Width
- 600 mm - 750 mm
- Swing Speed
- 6.5 rpm - 7.5 rpm (est.)
- Hydraulic Pump Flow
- 800 l/min - 900 l/min (est.)
- Fuel Tank Capacity
- 700 L - 800 L (est.)
- Undercarriage Type
- Long (L)
- Transport Length (Boom Down)
- 12.5 m - 13.5 m (est.)
Specifications can vary slightly based on specific configuration, boom/stick length, and regional variations. Values provided are typical for the 365BL series.
Applications
- Large-scale bulk earthmoving and excavation
- Quarrying and aggregate production (loading crushers, stockpiling)
- Mining operations (overburden removal, loading haul trucks)
- Heavy civil construction (dam building, large infrastructure projects)
- Demolition of large structures
- Pipeline trenching in challenging ground conditions
Features
- Robust Cat 3406C diesel engine for reliable power
- Heavy-duty boom and stick for demanding applications
- Advanced hydraulic system for precise and powerful operation
- Long undercarriage (L) for enhanced stability and lifting capacity
- Comfortable operator station with good visibility (for its era)
- Heavy-duty track frames and components for extended wear life
- Easy access to service points for routine maintenance
Operating requirements
- Experienced and certified excavator operator for safe and efficient operation
- Regular pre-shift inspections and daily maintenance checks
- Adequate fuel supply (diesel) and hydraulic oil
- Suitable ground conditions for a heavy machine (avoiding unstable or excessively soft ground)
- Proper site planning for material movement and safety zones
- Access to skilled mechanics for routine servicing and repairs, especially for older units
- Compliance with local safety regulations and environmental standards
Attachments and options
Common attachments
- Heavy-duty rock buckets (various capacities)
- General purpose digging buckets
- Hydraulic breakers/hammers for rock and concrete demolition
- Rippers for breaking up hard ground
- Clamshell buckets (less common, but possible for specific applications)
- Quick couplers for efficient attachment changes
Options
- Various boom and stick configurations (e.g., mass excavation, general purpose)
- Different track shoe widths to suit ground conditions
- Auxiliary hydraulic lines for powered attachments
- Heavy-duty guarding packages for quarry/demolition work
- Cold weather starting aids (less critical in most SA regions)
- Specialised operator seats and climate control options
Maintenance and inspections
- Daily checks: fluid levels (engine oil, hydraulic oil, coolant), track tension, grease points
- Regular oil and filter changes (engine, hydraulic, fuel)
- Undercarriage inspection and maintenance (track links, rollers, idlers, sprockets)
- Hydraulic system checks: hose condition, cylinder seals, pump performance
- Boom and stick pin and bushing lubrication and inspection
- Cooling system maintenance: radiator cleaning, coolant quality
- Electrical system checks: battery, lights, warning indicators
Given the age of the 365BL, proactive and diligent maintenance is crucial to ensure reliability and extend service life. Sourcing genuine or high-quality aftermarket parts from reputable suppliers is highly recommended in South Africa.
Safety notes
- ROPS/FOPS certified cab for operator protection
- Emergency stop buttons within operator's reach
- Warning lights and alarms for critical system faults
- Good visibility from the cab, often supplemented with mirrors
- Handrails and anti-slip surfaces for safe access and egress
- Hydraulic lockouts to prevent unintended movement
- Regular safety inspections and operator training
Buying checklist
- Full service history and maintenance records (critical for older machines)
- Undercarriage condition (tracks, rollers, idlers, sprockets) – a major cost item
- Engine health: check for smoke, unusual noises, oil leaks, and power output
- Hydraulic system: inspect for leaks, smooth operation, and full power on all functions
- Boom and stick: check for cracks, welds, and excessive play in pins and bushings
- Swing gear and bearing: listen for grinding noises, check for excessive play
- Cab condition: ensure all controls, gauges, and safety features are functional
- Attachment condition: inspect bucket for wear, cracks, and tooth retention
- Electrical system: check lights, wiring, and battery health
- Availability of spares and local dealer support in South Africa
FAQ
What is the typical fuel consumption of a Caterpillar 365BL?
Fuel consumption for a 365BL can vary significantly based on application, operator technique, and engine condition. Expect a range of 40 to 60 litres per hour under typical heavy-duty operation in South Africa. (est.)
Is it difficult to find parts for an older model like the 365BL in South Africa?
While it's an older model, Caterpillar has a strong parts network in South Africa. Many common wear parts and engine components are still readily available, though some specific or less common parts might require a longer lead time or sourcing from specialist suppliers.
What are the main advantages of the 'L' (long undercarriage) version?
The long undercarriage provides increased stability, especially when working on slopes or performing heavy lifts. It also distributes the machine's weight over a larger area, reducing ground pressure and improving flotation in softer ground conditions, which is beneficial for many South African sites.
What should I look out for regarding the engine on a used 365BL?
Pay close attention to the Cat 3406C engine. Check for excessive black or blue smoke, signs of oil leaks, unusual knocking sounds, and ensure it starts easily. A well-maintained 3406C is very reliable, but neglect can lead to costly repairs.
