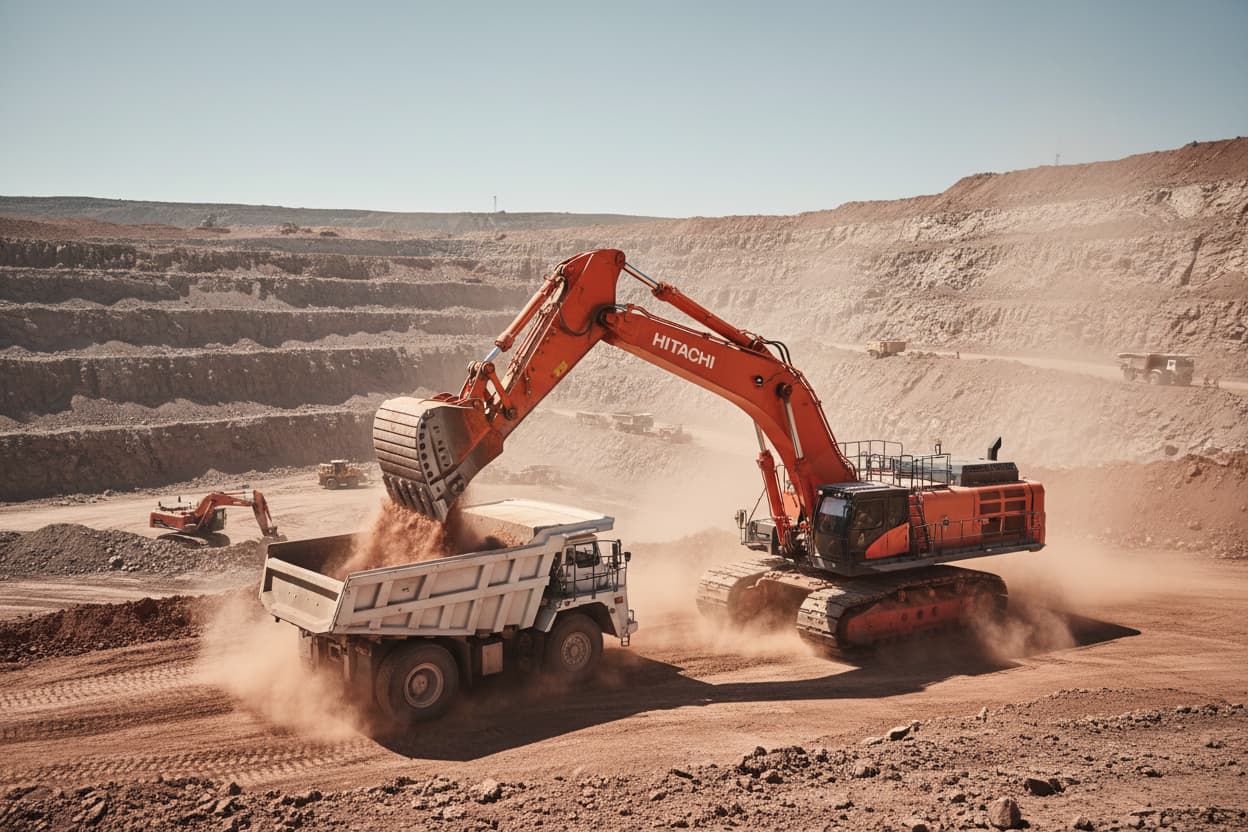

Hitachi EX5600-7-LD Excavator
The Hitachi EX5600-7-LD is a colossal hydraulic excavator engineered for extreme mining and quarrying operations, offering unparalleled productivity, fuel efficiency, and advanced technological integration for South African heavy-duty applications.
Overview
The Hitachi EX5600-7-LD is a formidable hydraulic excavator, specifically designed for the most demanding large-scale mining and quarrying environments prevalent in South Africa. As part of Hitachi's advanced EX-7 series, this machine represents the pinnacle of hydraulic excavator technology, focusing on maximizing productivity, enhancing operator comfort, and reducing operational costs over its lifespan. Its 'LD' designation typically indicates a 'Loading' configuration, optimized for efficient truck loading in high-volume operations.
This excavator is built to handle massive volumes of overburden and ore, making it an indispensable asset for major mining houses and large-scale contractors. Its robust construction, powerful engines, and sophisticated hydraulic system ensure reliable performance even in the harshest South African conditions, from the arid Northern Cape to the highveld coalfields. The EX5600-7-LD integrates advanced features such as a redesigned hydraulic system for improved efficiency, enhanced structural durability, and state-of-the-art operator aids to boost safety and operational precision.
Key considerations for South African operators include:
- Fuel Efficiency: With rising fuel costs, the EX5600-7-LD's optimized engine and hydraulic systems are crucial for reducing overall operating expenses.
- Parts and Service Network: Hitachi's established presence and service network in South Africa are vital for minimizing downtime and ensuring quick access to genuine parts and expert technical support.
- Operator Training: The complexity and scale of this machine necessitate comprehensive operator training to unlock its full potential and ensure safe operation.
- Site Logistics: Transporting and assembling such a large machine requires significant logistical planning and specialized equipment, a common challenge for large mining machinery in remote areas.
The EX5600-7-LD is not just an excavator; it's a strategic investment aimed at significantly improving the efficiency and output of large-scale earthmoving projects, offering a competitive edge in the South African mining sector.
Key specs
- Operating Weight
- 544,000 kg
- Engine Power (Gross)
- 2 x 1,119 kW (2 x 1,500 hp)
- Bucket Capacity (Shovel)
- 29.0 - 34.0 m³
- Bucket Capacity (Backhoe)
- 29.0 - 34.0 m³
- Rated Payload
- Up to 55,000 kg (estimated) (est.)
- Maximum Digging Force (Arm)
- 1,600 kN (estimated) (est.)
- Maximum Digging Force (Bucket)
- 1,700 kN (estimated) (est.)
- Fuel Tank Capacity
- 10,000 - 12,000 litres (estimated) (est.)
- Hydraulic System Flow
- Multiple high-capacity pumps
- Undercarriage Type
- Heavy-duty track type
- Swing Speed
- 3.0 - 3.5 rpm (estimated) (est.)
- Travel Speed
- Up to 2.5 km/h
Specifications are based on typical configurations for the EX5600-7 series and may vary depending on specific market configurations and attachments. 'LD' typically denotes a loading configuration.
Applications
- Large-scale open-pit mining (coal, iron ore, platinum, diamonds)
- Heavy-duty quarrying operations
- Overburden removal in surface mines
- Loading ultra-class haul trucks (e.g., 240-ton to 360-ton capacity)
- Mass excavation for major infrastructure projects (dams, large foundations)
Features
- Dual Cummins QSKTA50-CE diesel engines for robust power and redundancy
- Advanced hydraulic system with electronic pump control for optimal efficiency
- Reinforced boom and arm structures for enhanced durability in harsh conditions
- Ergonomic, air-conditioned cab with advanced monitoring systems and reduced vibration
- Auto-lubrication system for critical components, reducing manual maintenance
- ConSite OIL and ConSite Mine for remote monitoring and predictive maintenance
- Walkways and handrails for safe access and maintenance
Operating requirements
- Highly skilled and certified operators experienced with large mining equipment
- Robust site infrastructure, including well-maintained haul roads and stable benches
- Dedicated maintenance team with specialized tools and diagnostic equipment
- Consistent supply of high-quality diesel fuel and lubricants
- Effective dust suppression measures in dry mining environments
- Comprehensive safety protocols for large machine operation and interaction with haul trucks
Attachments and options
Common attachments
- Heavy-duty rock shovel bucket (face shovel)
- Heavy-duty backhoe bucket
- Specialised mining-grade GET (Ground Engaging Tools)
Options
- Various bucket capacities and tooth configurations
- Cold weather starting kits
- Additional lighting packages for night operations
- Fire suppression systems
- Customised safety railings and access platforms
- Advanced telematics and fleet management integration
Maintenance and inspections
- Daily pre-shift inspections and fluid level checks
- Regular scheduled servicing (e.g., 250-hour, 500-hour, 1000-hour intervals)
- Hydraulic system filter replacement and oil analysis
- Undercarriage inspection and track tension adjustment
- Engine oil and filter changes, air filter cleaning/replacement
- Greasing of all pivot points and articulation joints (often automated)
- Structural integrity checks of boom, arm, and chassis
Due to the machine's size and complexity, maintenance requires specialized technicians and equipment. Adherence to Hitachi's recommended service schedule is critical for longevity and performance.
Safety notes
- ROPS/FOPS certified cab for operator protection
- Multiple cameras and proximity sensors for enhanced visibility
- Emergency stop buttons inside and outside the cab
- Automatic engine shutdown systems
- Non-slip surfaces, handrails, and wide walkways for safe access
- Fire suppression system (optional but highly recommended for mining)
- Audible travel alarms and warning lights
Buying checklist
- Verify complete service history and maintenance records (if pre-owned)
- Inspect undercarriage for wear, including tracks, rollers, and idlers
- Assess structural integrity of boom, arm, and bucket for cracks or repairs
- Check engine and hydraulic system for leaks, unusual noises, or performance issues
- Confirm availability of local Hitachi dealer support and parts supply in South Africa
- Evaluate fuel consumption data against projected operational costs
- Review operator comfort and safety features, including cab condition and controls
- Obtain a detailed pre-purchase inspection report from a qualified technician
- Clarify warranty terms and conditions, especially for new machines
- Consider transport and assembly logistics for delivery to site
FAQ
What is the primary application of the Hitachi EX5600-7-LD?
The EX5600-7-LD is primarily designed for heavy-duty, large-scale open-pit mining and quarrying operations, specifically for efficient loading of ultra-class haul trucks with overburden or ore.
How does the 'LD' designation affect its performance?
The 'LD' typically stands for 'Loading' or 'Long Distance' (though less common for excavators), indicating a configuration optimized for high-volume truck loading, often with a face shovel attachment for efficient digging and dumping into haulers.
What are the key advantages of the EX5600-7-LD for South African mining?
Its key advantages include high productivity, robust construction for harsh conditions, advanced fuel efficiency, strong local dealer support for parts and service, and integrated technology for operational monitoring and safety, all critical for the demanding South African mining sector.
Is operator training essential for this machine?
Absolutely. Given its immense size, power, and advanced systems, comprehensive and ongoing operator training is essential to ensure safe, efficient, and productive operation, as well as to minimise wear and tear.
What kind of haul trucks can the EX5600-7-LD load efficiently?
This excavator is typically matched with ultra-class haul trucks ranging from 240-ton to 360-ton capacity, achieving optimal loading cycles and fleet efficiency in large mining operations.
