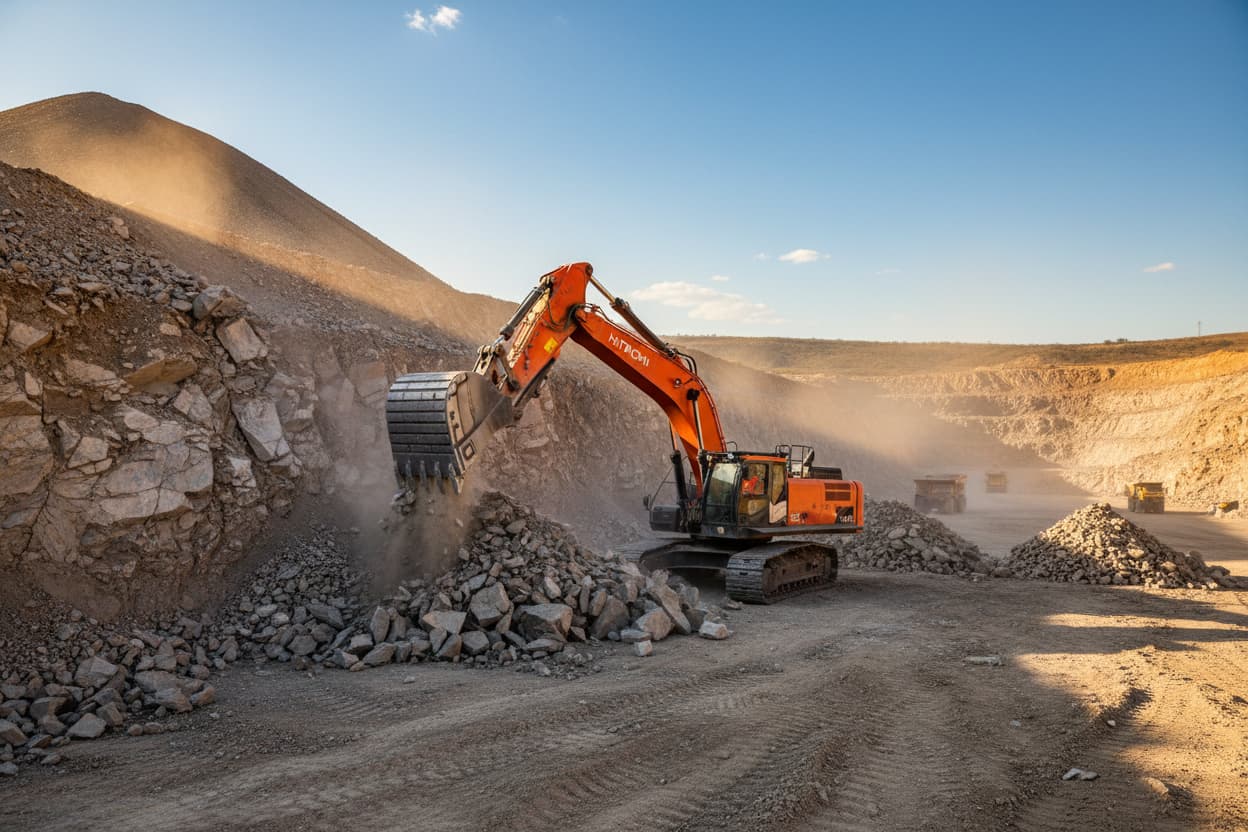

Hitachi ZX690LCR-6 Excavator
The Hitachi ZX690LCR-6 is a robust 70-ton class hydraulic excavator engineered for extreme duty cycles in South African mining, quarrying, and large-scale construction. It offers exceptional power, durability, and fuel efficiency for high-volume material handling.
Overview
The Hitachi ZX690LCR-6 is a formidable hydraulic excavator, positioned in the heavy-duty 70-ton class, specifically designed to tackle the most demanding applications found in South Africa's mining, quarrying, and large infrastructure projects. Its 'LCR' designation signifies a Long Carriage and Reinforced structure, indicating enhanced stability and durability crucial for aggressive digging and loading operations in challenging terrains.
Powered by a high-performance, fuel-efficient engine, the ZX690LCR-6 delivers impressive breakout force and lifting capacity, ensuring high productivity even in tough rock and overburden. Hitachi's focus on operator comfort and safety is evident in the spacious, ergonomic cab, which features advanced controls and excellent visibility, reducing fatigue during long shifts typical in South African operations.
Key design considerations for the ZX690LCR-6 include:
- Structural Integrity: Reinforced boom, arm, and undercarriage components are built to withstand the stresses of continuous heavy-duty work.
- Hydraulic System: Advanced hydraulic technology provides precise control, faster cycle times, and efficient power distribution.
- Engine Performance: Optimized for fuel economy without compromising on power, crucial for managing operational costs in remote locations.
- Maintenance Access: Designed with practical access points for routine checks and servicing, minimizing downtime.
- Technology Integration: Incorporates telematics systems for remote monitoring of machine health and performance, vital for fleet management.
For South African contractors and mining houses, the ZX690LCR-6 represents a significant investment in productivity and reliability. Its ability to handle large volumes of material efficiently makes it a preferred choice for operations where uptime and output are paramount. The machine's robust construction also ensures longevity, providing a strong return on investment over its operational lifespan, even under the harsh conditions often encountered locally.
Key specs
- Operating Weight
- 68,600 kg
- Engine Model
- Isusu 6WG1
- Gross Engine Power
- 345 kW (463 hp)
- Bucket Capacity (Standard)
- 3.5 - 4.5 m³ (est.)
- Max Digging Depth
- 7.5 - 8.5 m (est.)
- Max Reach at Ground Level
- 12.0 - 13.0 m (est.)
- Max Breakout Force (Bucket)
- 350 - 380 kN (est.)
- Swing Speed
- 7.5 - 8.5 rpm (est.)
- Travel Speed (High)
- 4.5 - 5.5 km/h (est.)
- Fuel Tank Capacity
- 800 - 900 L (est.)
- Hydraulic System Flow
- 2 x 400 - 450 L/min (est.)
- Undercarriage Type
- Long Carriage (LCR)
Specifications are based on typical configurations and may vary depending on specific market options and attachments. Values for bucket capacity, digging depth, reach, breakout force, swing speed, travel speed, fuel tank capacity, and hydraulic flow are estimated based on similar models in the 70-ton class.
Applications
- Large-scale mining operations (open-pit)
- Quarrying and aggregate production
- Heavy civil engineering and infrastructure projects
- Dam construction and large earthmoving
- Demolition of large structures
- Mass excavation for commercial and industrial developments
Features
- Reinforced boom, arm, and undercarriage for extreme durability
- Fuel-efficient Isuzu engine with optimized power output
- Advanced hydraulic system for precise control and fast cycle times
- Spacious, ergonomic, and air-conditioned operator cab
- ROPS/FOPS compliant cab for enhanced safety
- Hitachi Global e-Service telematics for remote monitoring
- Auto-idle and auto-shutdown functions for fuel savings
- Heavy-duty track shoes and rollers for challenging terrain
- Easy access points for routine maintenance and service
Operating requirements
- Skilled and certified excavator operator with heavy equipment experience
- Regular access to high-quality diesel fuel and lubricants
- Adequate transport logistics for machine relocation (lowbed trailer)
- On-site maintenance support and spare parts inventory for critical components
- Compliance with local mining and construction safety regulations
- Stable and level ground for safe operation, especially during heavy lifts
- Effective dust suppression measures in dry, dusty environments
Attachments and options
Common attachments
- Heavy-duty rock buckets (various capacities)
- General purpose digging buckets
- Hydraulic breakers/hammers
- Rippers
- Quick couplers
Options
- Various bucket sizes and types (e.g., heavy-duty, general purpose)
- Longer or shorter arm configurations
- Auxiliary hydraulic piping for attachments
- Additional lighting packages for night operations
- Specialized track shoes (e.g., triple grouser, swamp pads)
- Cold weather starting aids
- Custom paint and branding
Maintenance and inspections
- Daily pre-operation checks (fluids, filters, tracks, attachments)
- Regular engine oil and filter changes (e.g., every 250-500 hours)
- Hydraulic oil and filter replacement as per manufacturer schedule
- Greasing of all pivot points and pins
- Undercarriage inspection and tension adjustment
- Coolant level and quality checks
- Air filter cleaning/replacement
- Structural integrity checks on boom, arm, and chassis
Adherence to Hitachi's recommended service intervals is crucial for maximizing uptime and machine longevity, especially in the demanding South African operating conditions. Access to genuine Hitachi parts and qualified technicians is highly recommended.
Safety notes
- ROPS/FOPS certified cab for operator protection
- Emergency stop buttons (cab and ground level)
- Rearview camera and optional 360-degree camera system
- Anti-slip plates and handrails for safe access
- Seatbelt interlock system
- Audible travel alarm and horn
- Hydraulic lock levers to prevent accidental operation
- Fire suppression system (optional, highly recommended for mining)
Buying checklist
- Verify complete service history and maintenance records.
- Inspect undercarriage for wear on tracks, rollers, and sprockets.
- Check for leaks around hydraulic cylinders, hoses, and pumps.
- Assess boom and arm for cracks, welds, or structural damage.
- Test all hydraulic functions for smooth and responsive operation.
- Evaluate engine performance, listen for unusual noises, check exhaust.
- Confirm availability of local Hitachi dealer support and spare parts.
- Review telematics data for operational hours, fuel consumption, and fault codes.
- Obtain a professional third-party inspection if purchasing used.
- Negotiate warranty terms, especially for major components.
FAQ
What is the typical fuel consumption for a Hitachi ZX690LCR-6 in South Africa?
Fuel consumption for the ZX690LCR-6 can vary significantly based on application, operator technique, and material density. Operators can expect a range of 45-75 litres per hour under typical heavy-duty conditions in South Africa, with efficient operation aiming for the lower end. (est.)
Is the Hitachi ZX690LCR-6 suitable for hard rock mining?
Yes, the 'LCR' designation (Long Carriage, Reinforced) and its robust construction, combined with high breakout force and heavy-duty bucket options, make the ZX690LCR-6 highly suitable for demanding hard rock mining and quarrying applications in South Africa.
What are the common challenges when operating this machine in remote South African sites?
Common challenges include access to reliable fuel and lubricants, timely delivery of spare parts, availability of skilled technicians for complex repairs, and logistical challenges for transporting such a large machine. Planning for these aspects is crucial for maintaining uptime.
What is the expected lifespan of a Hitachi ZX690LCR-6?
With proper maintenance, adherence to service schedules, and skilled operation, a Hitachi ZX690LCR-6 can achieve an operational lifespan of 15,000 to 25,000 hours or more, depending on the severity of application and maintenance quality. Many units in South Africa exceed these figures with diligent care. (est.)
